Innolux 15.6Inch LCD Panel with 1920x1080 Pixels Resolution 450cd/m² Brightness and 40pin Interface Industrial LCD Display

Product Categories
FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Innolux 15.6Inch LCD Panel with 1920x1080 Pixels Resolution 450cd/m² Brightness and 40pin Interface Industrial LCD Display

  • 1
  • 2

Brand Name : innolux

Model Number : AT056TN52

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 1920*1080pixels

style : WLED 40P

brightness : 450 CCD M2

color : 16.7M

contrast ratio : 1000 :1

working life : 50K Hours

Contact Now

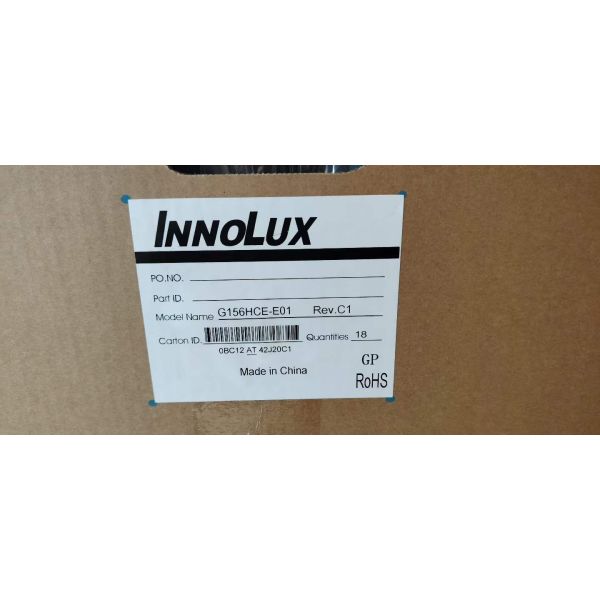

Innolux 15.6-Inch LCD Panel G156HCE-E01
15.6-inch industrial LCD module featuring 1920*1080 Full HD resolution, 450 cd/m² brightness, and 40-pin eDP interface. Designed for industrial applications and gaming systems with wide operating temperature range and robust construction.
Key Features
  • 15.6-inch diagonal a-Si TFT-LCD display
  • Full HD 1920*1080 resolution (141 PPI)
  • High brightness: 450 cd/m² (typical)
  • 1000:1 contrast ratio
  • WLED backlight with 50,000-hour lifespan
  • eDP 1.2 interface with 40-pin connector
  • Wide viewing angle: 89/89/89/89
  • Industrial temperature range: 0°C to 60°C
  • Anti-glare, hard coating (3H) surface treatment
Technical Specifications
BrandInnolux
Model NumberG156HCE-E01
Panel Typea-Si TFT-LCD, LCM
Active Area344.16 * 193.59 mm
Outline Dimensions351.84 * 208.88 * 6.5 mm (H*V*D)
Pixel FormatRGB Vertical Stripe
Color Depth16.7M colors (72% NTSC)
Response Time14/11 ms (Typ.)
Refresh Rate60Hz
Operating Voltage3.3V (Typ.)
Weight550g (Typ.)
Operating Temperature0°C to 60°C
Storage Temperature-20°C to 70°C
Vibration Resistance1.5G (14.7 m/s²)
Innolux 15.6Inch LCD Panel with 1920x1080 Pixels Resolution 450cd/m² Brightness and 40pin Interface Industrial LCD Display
This model entered mass production in Q2 2020 and is currently in production. For the latest production status and detailed specifications, we recommend contacting Innolux or their authorized agents directly. Product information is subject to change without notice.
